Fire-Resistant Aluminum Composite Panel

Fire-Resistant Aluminum Composite Panel

Shanghai Alubang Decorative Material Co., Ltd.


Location:China
Business Type:Manufacturer, Exporter
Brands:Alubang
Certificate:GB,SGS
Terms of payment and delivery:T/T,L/C
Minimum order quantity:600 Sqm
Price:Consultation
Packing details:Wooden Package or In Bulk
Delivery time:7-20 Days

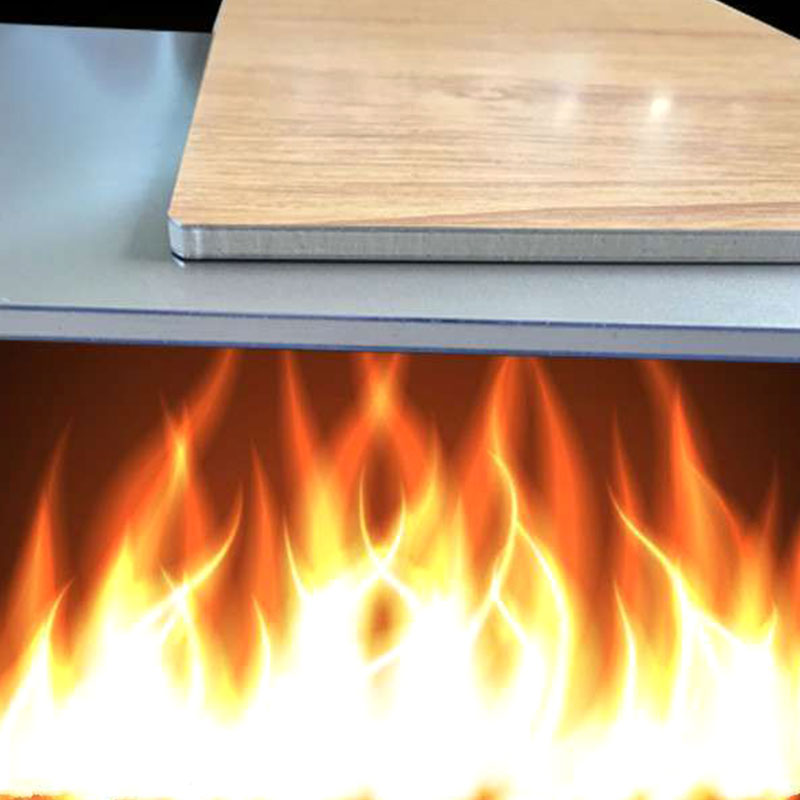

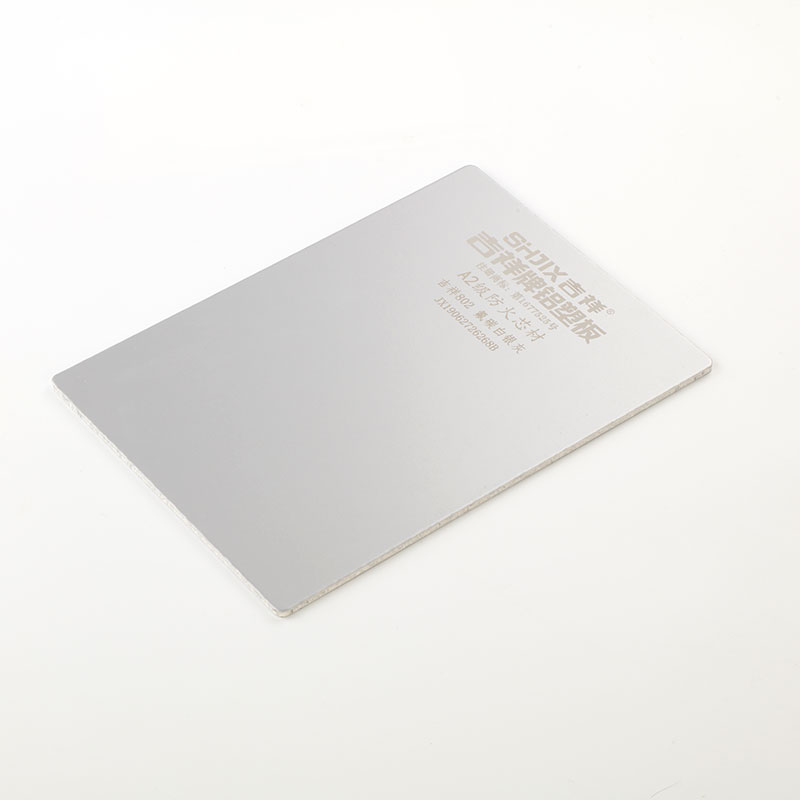

ALUBANG Fire-resist ACP



ALUBANG FR (Fire resist) ACP comprises a mineral core between two aluminum skins. Thicknesses of the mineral core and aluminum skins can be designed according to customers’ requirements. Besides the traditional Magnesium Hydroxide filled core, Aluminum Tri-hydroxide filled core is available as well. The front surface can be PVDF, FEVE, Nano or PE coated. The bottom surface can be used anti-corrosive paint.
The interlayer is non-combustible mineral material, which has excellent ability in fire resistance. Also, mineral material enables ACP to have high peel strength and excellent impact resistance.

Invention of ALUBANG FR has significant meaning cause nowadays many applications are required materials with higher fire security classification with certified standards, therefore ALUBANG FR panel fulfills the basic demand of fire safety requirement and meanwhile with beauty for those applications.

ALUBANG Fire-resist ACP can be processed and installed exactly same way like normal architectural ACP.

With the motivation to provide to the market a more affordable fire-resistant aluminum composite panel, ALUBANG invested lots of work in upgrading the production facilities and production technology to save cost, and now ALUBANG FR valuable is much more competitive compare with competitors.

ALUBANG FR ACP meets the standards of GB 8624 (Grade B, Grade A2), ASTM E-84(Grade B, Grade A2), ASTM E119(2 hours), NFPA 285 (Qualified), EN13501-1 (Grade A2)





Raw Material



Aluminum Material: High strength aluminum alloy sheet
Core Material: Fire-resist core
Surface Coating: PVDF, FEVE, Nano or PE coating

Bottom Coating: Anticorrosive primer coating





Characteristic of Fire-resist ACP



                                           Standard
                                No.
Burning
Degree
China Germany USA UK France Japan Russia
GB/T8627 DIN 4102 ASTM E84 BS 476 NFF 16-101 JIS K6911 30244-94
Minimal A A1, A2 E84 O MO 1 T1
Minor B1 B1 NC 1 M1, M2 2 T2
Normal B2 B2 A 2,3 M3 3 T3
Severe B3 B3 B, C 4 M4, M5 -
0
Views: 5,615







  Standard (mm) More Choice (mm)
Panel Thickness 4 3, 5, 6, 8
Aluminum Thickness 0.5 0.3~0.5
Panel Width 1220, 1250 1270, 1500, 2000
Panel Length 2440, 3050 1000~6000
