Aluminum Corrugated Panel

Aluminum Corrugated Panel

Shanghai Alubang Decorative Material Co., Ltd.


Location:China
Business Type:Manufacturer, Exporter
Brands:Alubang
Certificate:GB,SGS
Terms of payment and delivery:T/T,L/C
Minimum order quantity:600 Sqm
Price:Consultation
Packing details:Wooden Package or In Bulk
Delivery time:7-20 Days

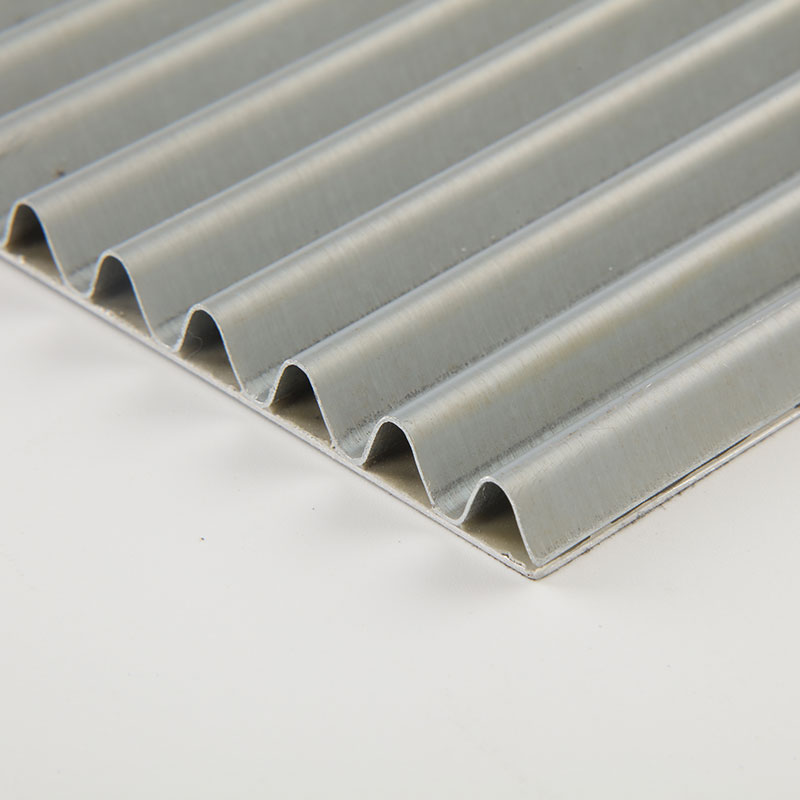

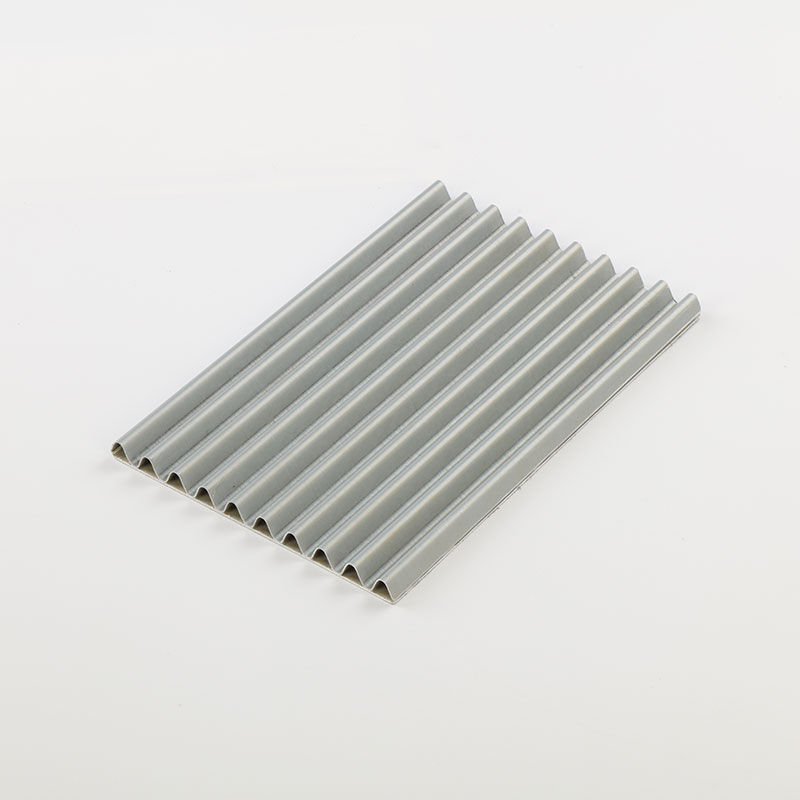

ALUBANG Aluminum Corrugated Panel

ALUBANG aluminum corrugated panel is a contemporary composite panel product with non-Combustible Corrugated Metal Core and Color Coated Aluminum Sheets on either side manufactured using Hi-tech Lamination technology. It is available in various Colors, Finishes, and Sizes.

Non-Combustible corrugated aluminum core provides enhanced Fire Resistance and Light weightiness for the ALUBANG corrugated panel. It is classified as Class A2 as per DIN 4102-1 and certified as Low emitting products and materials for General Construction materials/ Wall cladding by Greengard Environmental Institute.





Raw Material

Top Skin: Aluminum, Stainless Steel, Titanium Zinc

Core Material: anodized aluminum honeycomb

Bottom Skin: Aluminum





Characteristics of Aluminum Corrugated Panel

Durability

Economic

Heat-Insulation

Non-Combustible

Light Weight

Eco Friendly

Sound Insulation

Non-combustible Core





Application

• Exterior elevators.
• Floors, walls and ceilings for elevators.
• Ramps, platforms and mobile scenarios.
• Structures for military radars.
• Interiors for trucks and buses.
• Vertical partitions.
• Cleanrooms.
• Equipment Fairings.
• Recordable ceilings.
• Support for thin rolling stone, marble and granite.

0
Views: 1,166







Comparative table of metal exterior



Item Aluminum Composite
Panel
Aluminum. Solid Panel
(3mm)
Aluminum Corrugated
Panel
Material 0.5mm 3.0mm 0.8mm,0.6mm
Thickness 4mm 3.0mm 6mm, 4mm
Weight 5.7 kg/m2 8.1 kg/m2 4.3 kg/m2, 3.7 kg/m2
Light Weight Good Normal Excellent
Fire Proof Normal Good Good







Secondary operation of Aluminum corrugated composite Panel

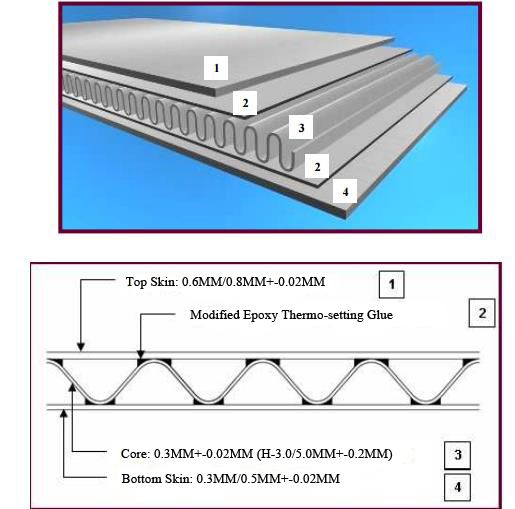

Typical Composition of Aluminum Corrugated Panel

(Diagrammatic Representation)

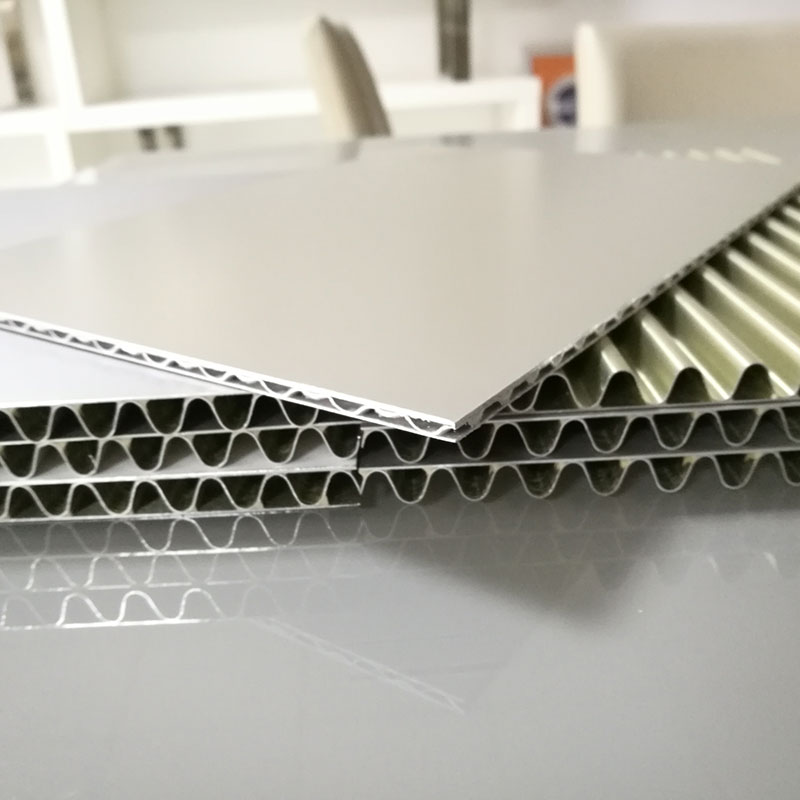

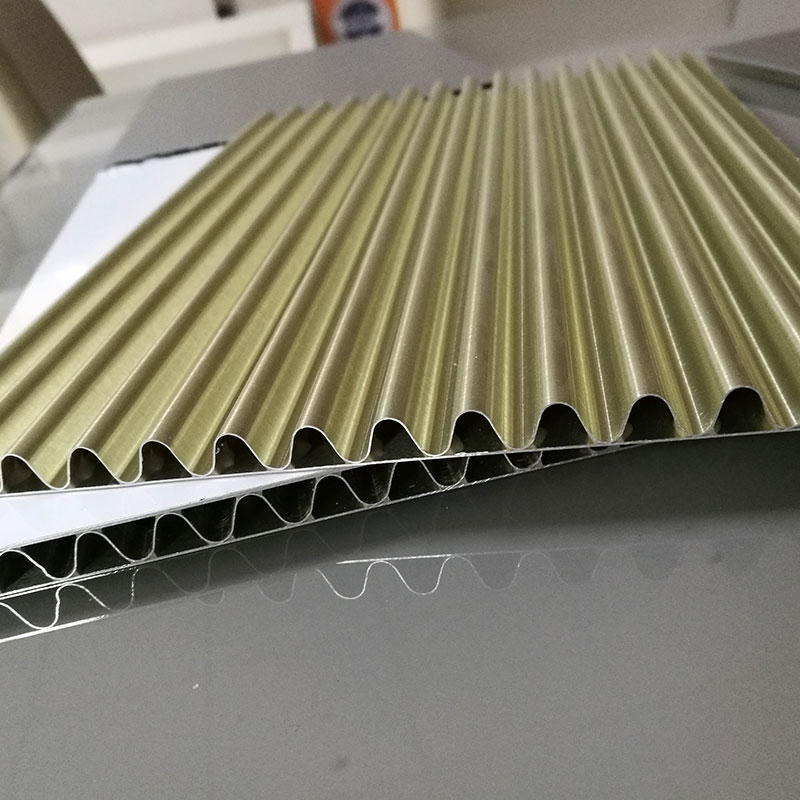

Composition



Two sheets of aluminum sandwiching a corrugated Aluminum core formed in a continuous lamination process. Surface of panel is Aluminum Sheet Coated with PVDF and back side of Panel with primer.









Product Dimension



It is available in various dimensions; our standard product is 6*1250*2440 Other available sizes are as follows:



Dimension

Unit

Standard

Size Available

Width

mm

1250

1000-1500

Length

mm

2440

<6000

Thickness

mm

6

4, 6, 10







Coating Finish

Aluminum Coil alloy (3003 Series) coated with KYNAR®500 based Fluorocarbon (PVDF utilizing a minimum 70% resin). PVDF Coating system offers Two or Three Layer coating depending on color selection such as Metallic colors and Normal RAL Colors.



Product Parameters



  Standard (mm) More Choice (mm)
Panel Thickness 6 4~12
Aluminum Thickness 0.5 0.3~0.8
Panel Width 1250, 1500 1000~2000
Panel Length 2440, 3200 1000~10000
