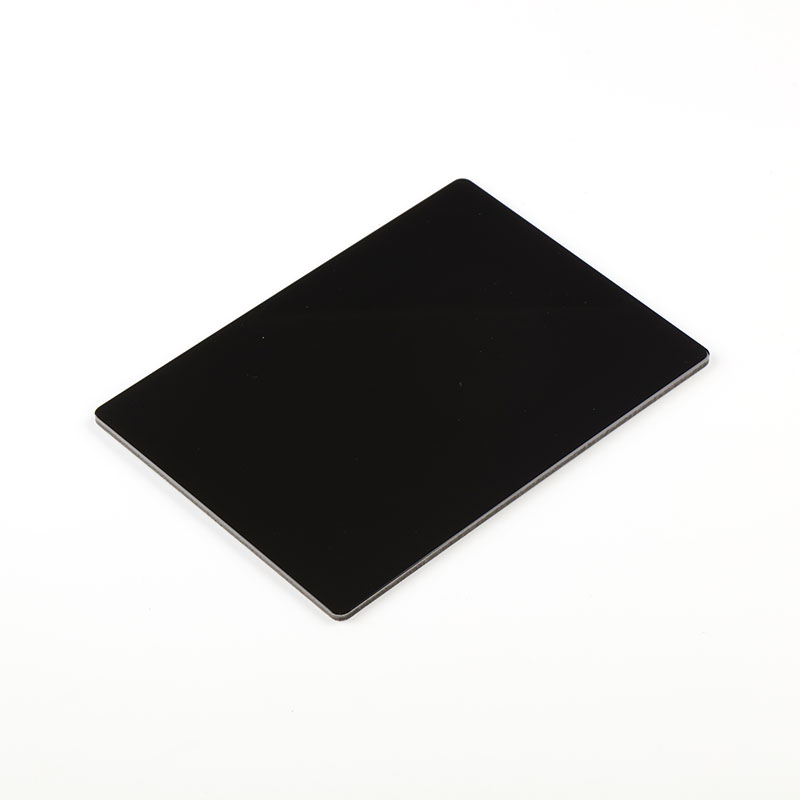

Nano-Meter Panel

Nano-Meter Panel

Shanghai Alubang Decorative Material Co., Ltd.

Business Type:Manufacturer, Exporter
Terms of payment and delivery:T/T,L/C
Minimum order quantity:600 Sqm
Packing details:Wooden Package or In Bulk
Delivery time:7-20 Days






Nano PVDF Panels uses a new and exciting technology to change the molecular structure of the surface of the paint. This improves and enhances the paint coating by giving it a longer color and gloss retention. It is applied as a 4th layer of coating over and above the 3rd layer of PVDF coating. The 4th layer of Nano coating which is made from a water soluble chemical seals any air gaps between the tiny paint molecules thus preventing dirt, water, permanent paint or any foreign particles to penetrate through the paint surface, making the paint surface lipophobic and hydrophobic.

The high-tech Nano technology, it has more super advantages in pollution resistance, self-cleaning function, acid resistance and alkaline resistance.



Raw Material


Aluminum Material: High strength aluminum alloy sheet
Core Material: Non-toxic low-density polyethylene
Surface Coating: Nano PVDF coating

Bottom Coating: Anticorrosive primer coating



Characteristic of Nano PVDF ACP


Except the normal PVDF ACP characteristics, Nano PVDF ACP also has its special advantages as follow:

The dirt will be not easily attached to the surface because of the compact coating. And it would automatically break down under ultraviolet.

2.Anti-graffiti VCR(Use Oil-base Mark Pen for Test)


Views: 2,138





  Standard (mm) More Choice (mm)
Panel Thickness 4 3, 5, 6, 8
Aluminum Thickness 0.5 0.3~0.5
Panel Width 1220, 1250 1270, 1500, 2000
Panel Length 2440, 3050 1000~6000
